    Automatic Biaxial Rotomoulding Machine With Interchangeable Arms

    Ask Lasest Price
    Brand Name : yingchuang
    Certification : CE
    Price : $3,000.00 - $117,000.00 / Acres
    Supply Ability : 5 Acre/Acres per Month
    • Product Details
    • Company Profile

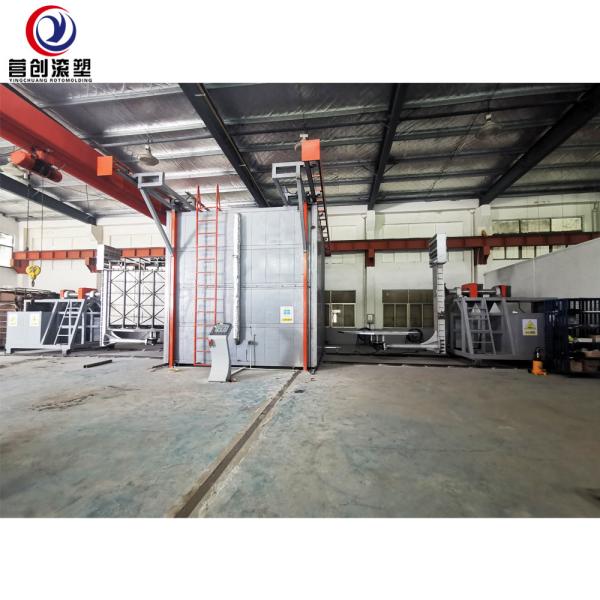

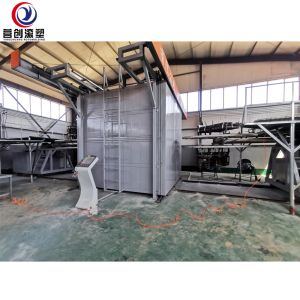

    Automatic Biaxial Rotomoulding Machine With Interchangeable Arms

    This machine maximum reliability and simplicity in use. An ideal machine for high volume production of articles, even of different sizes with similar working cycles. Sturdy construction a minimum maintenance are its principal features. It can be equipped on request with 3 or 4 arms that change station simultaneously, so alternating in the different phases. Many cycle customising possibilities (double loading/unloading station, pre-cooling etc.


    Standard features:

    • Direct rotation movements guided by sturdy gears, powered by A.C. motors controlled by inverters with ramp regulators in acceleration/deceleration of the rotation speeds;
    • Interchangeable arms in one block equipped with an air or inert gas injection system;
    • Thanks to a high-efficiency ventilation system combined with excellent thermal insulation in high non-conductive material, considerable energy saving is achieved;
    • Cooling chamber equipped with high-efficiency fans functioning with blown air and atomized water;
    • Oven door in modular, thermally pre-formed panels;
    • Visual and acoustic alarm circuit;
    • Satellite console to facilitate operator functions;

    OPTIONS

    • Supervision system PC/PLC;
    • Water recycling pump;
    • Inverter for regulating door opening/closing speed;
    • Cooling station with semicircular sliding doors in stainless steel;
    • Arms with supplementary airways;
    • Mobile and fixed work platforms
    Specifications

    Model No
    Floor SizeBiggesttank made
    L(m)W(m)H(m)Operation platform
    CS-2A-100042.82×150L
    CS-2A-160083.62.8×500L
    CS-2A-2000104.63.2×1000L
    CS-2A-250012.56.242500L
    CS-2A-30001474.24500L
    CS-2A-350016.584.57000L
    CS-2A-400017.595.210000L
    CS-2A-450019105.914000L
    CS-2A-500021116.520000L
    CS-2A-55002312725000L
    CS-2A-600024.5137.235000L
    CS-2A-65002715840000L
    CS-2A-750032179.550000L
